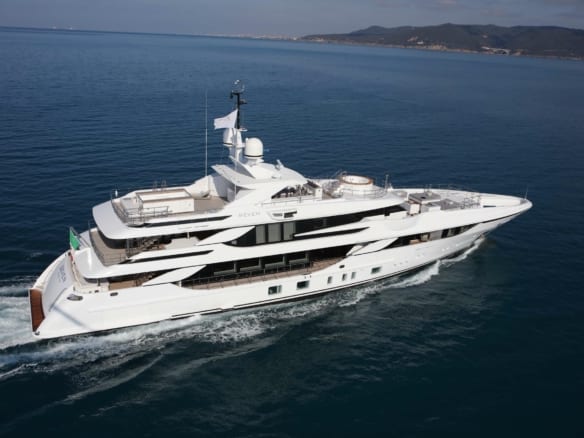

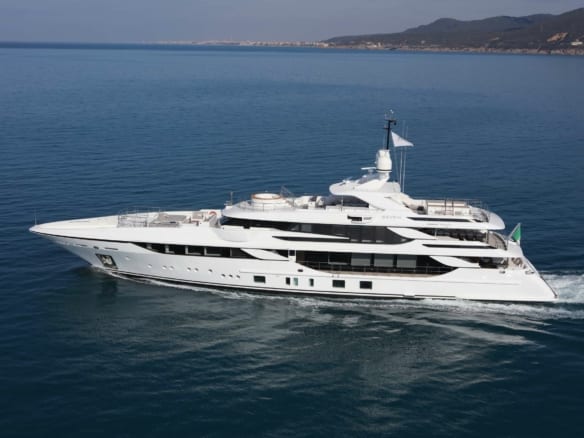

ABOUT SUPERYACHT BENETTI FB 800 SERIES ZAZOU
BENETTI FB 800 SERIES ZAZOU SUPERYACHT IS OFFERED FOR SALE . SHE WAS BUILT IN 2016 BY BENETTI IN ITALY. THE YACHT’S INTERIOR IS DESIGNED BY BANNENBERG & ROWELL DESIGN AND HER EXTERIOR STYLING IS BY BENETTI’S IN-HOUSE TEAM. SUPERYACHT BENETTI FB 800 SERIES ZAZOU FEATURES DISPLACEMENT GRP HULL WITH ALUMINIUM SUPERSTRUCTURE.

BENETTI FB 800 SERIES ZAZOU SPECIFICATIONS
MODEL
FB 800 series
BUILDER
Benetti
DELIVERY
2016
PRODUCTION STATUS
DELIVERED
ASKING PRICE, €
Price on requestGET UPDATES
LENGTH, M
50
BEAM, M
9.26
DRAUGHT, M
2.7
RANGE, NM
4,000
TOP SPEED, KNOTS
15.5
CRUISING SPEED, KNOTS
14
CABINS
6
YACHT TYPE
Superyacht
INTERIOR DESIGN
Bannenberg & Rowell Design
EXTERIOR DESIGN
Benetti’s in-house team
GUESTS
12
CREW CABINS
6
PROJECT NAME
Breeze
MACHINERY
PROPULSION TYPE
Shaft drive
GENERATORS
1 x CAT 118 kW + 1 x CAT 150 kW 400 V AC/3 ph + N/50 hz
PROPELLERS
2 x five fixed blades made in nickel – aluminium – bronze alloy
ENGINES
2 x CAT C32 ACERT
ENGINE POWER, HP
2 x 1,193 kW
ANTI-ROLL STABILISERS
2 x Naiad Dynamics
CAPACITIES
DISPLACEMENT, TONS
422
FUEL, L
55,000
FRESH WATER, L
11,000
CREW
8
GROSS TONNAGE, GRT
499
CLASS/TYPE
NAME
Zazou
HULL MATERIAL
GRP
NAVAL ARCHITECT
Benetti Technical Depar tment
CLASS
ABS, LY3
SUPERSTRUCTURE
Aluminium
HULL TYPE
Displacement
YARD NUMBER
FB802
Additional Specs, Equipment and Information:

Specs
Builder: Azimut Benetti SpA
Designer: Azimut Benetti / Bannenberg & Rowell Design
Flag of Registry: Malta
Hull Shape: Displacement

Dimensions
LOA: 49.92 m
Beam: 9.26 m
Maximum Draft: 2.65 m

Engines
Total Power: 3200 HP

Engine 1:
Engine Brand: CATERPILLAR
Engine Model: C32 ACERT
Engine Type: Inboard
Engine/Fuel Type: Diesel
Location: Port
Drive Type: Direct Drive
Engine Power: 1600 HP
Engine 2:
Engine Brand: CATERPILLAR
Engine Model: C32 ACERT
Engine Type: Inboard
Engine/Fuel Type: Diesel
Location: Starboard
Drive Type: Direct Drive
Engine Power: 1600 HP

Accommodations
Number of heads: 9

Full Specs
MAIN CHARACTERISTICS

Builder: Azimut Benetti S.p.A. (Italy)

Model: Benetti 50m

Hull Number: FB 802

Naval Architect: Azimut Benetti S.p.A.

Exterior Designer: Azimut Benetti S.p.A.

Interior Design: Bannenberg & Rowell Design

Type: Superyacht / Mega Yacht / Tri-deck Yacht / Motor-Yacht

Hull Material: GRP

Hull Type: Full Displacement

Superstructure Material: Aluminium Alloy

Decks: Teak

Year Built: 2016

Length Overall: 49.92 m (163’ 9”)

Length Waterline (full load): 41.20 m (135’ 2”)

Max Beam Overall: 9.26 m (30’ 5”)

Draft at Full Load (inc. Keel): 2.65 m (8’ 8”)

Displacement (light ship): 347,790 kgs

Gross Tonnage: 498 GT

Class: ABS ✠ A1 Commercial Yachting Service, ✠ AMS, LY2 Compliant

Flag of Registry: Malta

Lying: Tuscany, Italy

PROPULSION

Type / Fuel: Twin Screw Diesel

Main Engines: 2 x 1600 Hp (1193 kW) CATERPILLAR C32 ACERT

Engine Hours: 1365 h (Nov. 2020)

Maximum Speed (half load): 15.5 knots

Fuel Consumption @ Max Speed: 400 l/h

Range @ Max Speed: 4,000 nm

Cruising Speed (half load): 14 knots

Fuel Consumption @ Cruise Speed: 200 l/h

Range @ Cruise Speed: 6,000 nm

Gear Boxes: 2 x ZF 3356 gearboxes

Propellers: 2 x 5 fixed blades made in NiBrAl

TANKAGE

Total Fuel Capacity: 62,000 l (16,378.67 USG)

Total Fresh Water Capacity: 11,000 l (2,905.9 USG)

Grey Water Capacity: 1,872 l (494 USG)

Black Water Capacity: 2,824 l (746 USG)

Oily Bilge Water: 1,721 l (454 USG)

Sludge: 1,721 l (454 USG)

Clean Oil: 0,773 l (0,204 USG)

Dirty Oil: 0,773 l (0,204 USG)

ACCOMMODATION

Up to 12 + 1 Guests in 6 en-suite staterooms

Cabin Configuration:

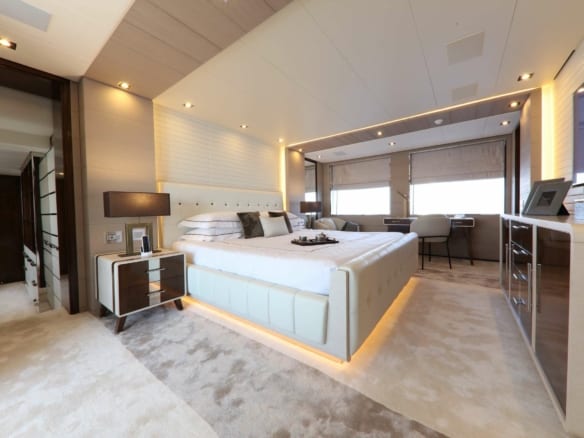

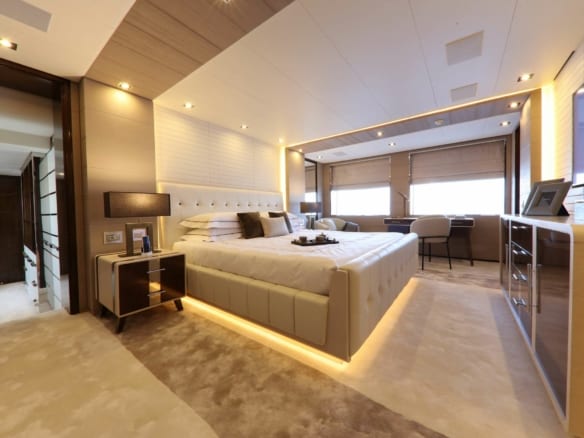

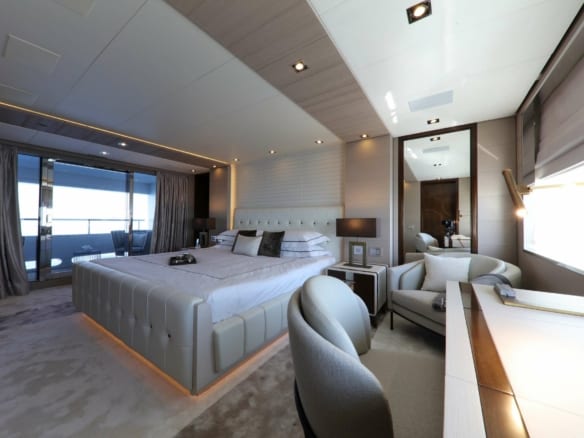

Master Cabin (double King-size island bed) on main deck with private study at the entrance, private terrace with balcony, His & Hers dressing rooms, His & Hers bathrooms, with tub and shower

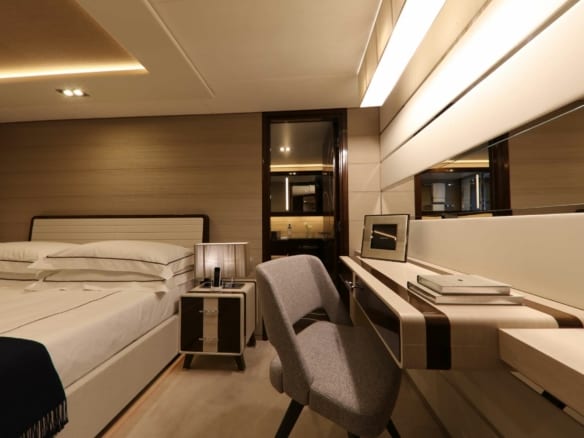

2 x VIP Cabins belowdecks, each with double island beds, walk-in closets, en-suite bathrooms
2 x Twin Guest cabins belowdecks, each with additional Pullman beds and en-suite bathrooms
Massage room on upper deck, with en-suite bathroom, easily convertible to 6th (single) cabin by lowering a bed concealed in the cabin’s wall
Day-head on main deck

Day-head on upper deck

Day-head on sundeck

Pantries on all decks

Stern beach club with day-head

11 Crew in 7 en-suite cabins

Crew Accommodation Configuration:

Captain’s cabin on upper deck (double) with en-suite bathroom
Engineer’s cabin belowdecks with en-suite bathroom
1st Mate ‘s cabin belowdecks with en-suite bathroom
4 x Crew cabins, each with bunkbeds and en-suite facilities

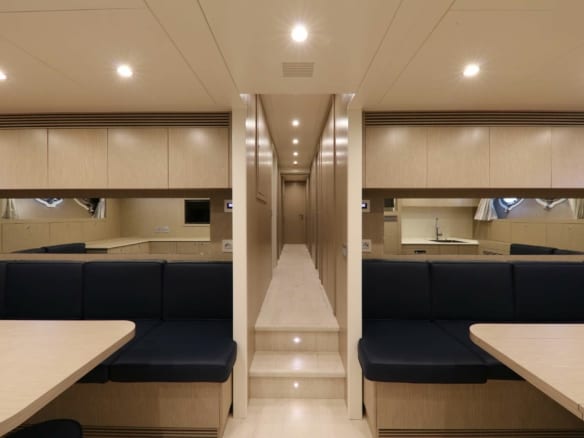

Crew mess and dinette

MAIN ANCILLARY EQUIPMENT

Fin Stabilisers: 2 x NAIAD DYNAMICS stabilizer system with non-retractable fins for underway and at anchor speed operations

Bow Thruster: Electric bow thruster 90 ekW, controlled from wheelhouse and bridge wings

Fuel Transfer Pumps: 2 x fuel transfer pumps, each with RACOR filters and fitted with a Y strainer (whose drip tray is connected to the sludge tank)

Fuel Separator: Fuel oil purifying system, capacity (average) 1.5 m3/h

Fuel Oil Filters: 2 installed in each engine

Sewage Treatment System

Grey Water Pumps

Fresh Water Pumps: 2 x electrical pumps with variable speed controllers model G&R ACM 402 BT 6-12 m3/h 63-14 m H2O, with pressure water tank (membrane type) for smoother operating

Hot Water Pumps: 2 x hot water circulating pumps, the hot water close loop is fitted with a thermometer and a thermostat

Water Makers: 2 x reverse osmosis water makers with a capacity of 7,500 l per day/each with all necessary gauges, filters, high- and low-pressure pumps (3-phase) and filter with reverse cycle cleaning

Water Softener: Water softener connected to the filling line of the tanks, treating water supplied from shore and from water makers

Water Heaters: 2 x electrical stainless-steel heating tanks each with 300 l capacity and 10 kW (5+5) heating elements each and double temperature sensors. These boilers are fitted with 1″ 1/4 discharge connection on their bottom, each water heater includes drip tray draining to the bilge

Fresh Water Steriliser: A particle filter and an ultraviolet sterilizer is installed, with automatic chlorine dosing unit, after desalination plant and at filling point inlet

Sea Water Cooling Pumps: 1 x electric pump for stabilizers system cooling, each propeller shaft is provided with a flowmeter switch, to measure the flow rate of cooling sea water. A ball type sight glass is installed on sea water line to shaft line

DOMETIC Air Conditioning System designed for the following parameters:

Summer Conditions: External air 35° C, RH 85% / Internal air 22° C, RH 55%
Winter Conditions: External air 0° C, / Internal air 22° C, RH 50%
Maximum sea water temperature: 32 °C
Air Treatment Units: Air Purifier system installed in all fancoils and areas of the yacht

Bilge and Fire System: Each watertight compartment has a separate bilge suction connected through a bilge manifold to the electric pumps. Bilge and fire pumps are installed with cross connections to be used for both bilge or fire systems

FM-200 Fire-Fighting System: Fixed FM-200 firefighting is installed to protect the engine room, additional FM-200 bottle installed outside the engine room

ELECTRICAL

Electric System: 400V AC 50 Hz, 3-phase for main equipment, 230V AC 50 Hz, 1-phase for small use

Generators: 1 x CAT 125 kW + 1 x CAT 143 kW – 400V AC, 3-phase 50 Hz

Generator Hours: Port 2343 h, Stbd 2765 h (Nov. 2020)

Batteries:

24V DC batteries, installed in battery boxes as per Classification Society rules, all batteries Gel type
1 x 24V DC, gel set for emergency (capacity 640 Ah)
Radio Batteries: 1 x 24V DC, gel set for radio equipment (capacity 160 Ah)
Service Batteries: 1 x battery group (total capacity 480 Ah) in engine room, 1 x battery group (total capacity 640 Ah) in wheelhouse for emergency lighting
Engines Starting Batteries: 1 x battery (120 Ah capacity each) for each generator
Engines Starting Batteries: 2 x batteries (200 Ah capacity each) for each engine
Paralleling the port and starboard main engine start batteries
Battery Chargers: 2 x battery chargers with change-over for main engines and generators, dedicated charger for service batteries
Low Voltage System: 24V DC to supply auxiliary items and equipment
Shore Power Inlet Sockets: 1 x 125 A on transom and one 125 A at bow) and one shore semi-automatic stowing system in the garage, 125 A, cable length 25m

2 x shore power cables, length 25m each, of suitable section for the two 125 A connections

Two of the three shore connections can be connected simultaneously

1 x 100 kVA, 400V (inlet) / 400V (outlet) 3-phase + N, 50 Hz shore insulation transformer

NAVIGATION, COMMUNICATION AND SIGNALLING EQUIPMENT

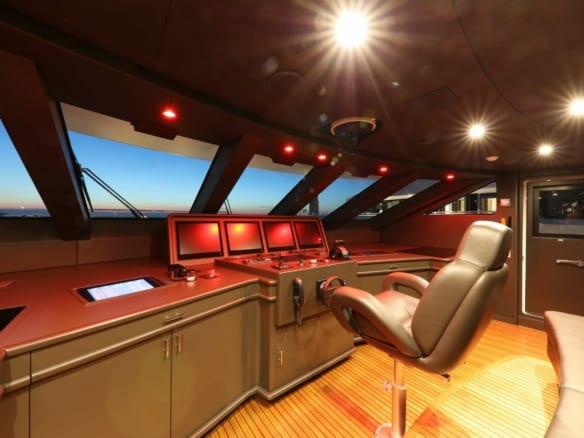

Benetti TEAM ITALIA I-BRIDGE System

The visualizing system consisting of:

4 x 19” HATTELAND marine monitors
1 x control system (based on trackballs and jogs)
1 x conversion and switching systems (based on a video matrix)
Intercom system:

Magnetophonic emergency telephone system between:
Wheelhouse
Engine Control room
Engine room (slave of ECR)
Lazaret emergency steering station
Speed Log: 1 x speed Log system, IMO approved with transducer

Echosounder: 1 x echosounder system, IMO approved with 2 x transducers one at the bow, one at the stern

Magnetic Compass: 1 x C-PLATH Jupiter ceiling mounted magnetic compass with deviation table

Wind System: 1 x WIND NMEA SYSTEM, with 2 x 6.5” monitors repeaters on bridge wings, an additional 6.5” monitor repeater with alarms in Captain Cabin

VHF Systems:

1 x VHF Class A GMDSS placed in wheelhouse
1 x VHF Class D placed in crew mess with remote unit in RT room
2 x SAILOR SP-3520 portable VHF, for GMDSS compliance
3 x commercial portable VHFs
Radars: 2 x radars FURUNO mod. 2117 with 6.5 ft antenna

Gyrocompass: 1 x C-PLATH Navigat X Mk2 gyro compass with digital repeater for steering room

Autopilot: 1 x autopilot Navis AP3000 (wheelmark), with 2 x follow-up mini wheel on bridge wings

GSM Phones: 1 x TELULAR cellphone SX-6

GPS System: 1 x FURUNO GPS model GP-170, plus 1 x GPS active antenna with NMEA interface

Chart Plotter with ECS Chart-plotting system composed by:

TRANSAS NS4000 software package (cartography included)
1 x marine processor TRANSAS RS6
Sat Com System: 1 x SAILOR STD C, for GMDSS compliance, with dedicated alarm control panel

SAILOR Fleet Broadband FB250 for data and VoIP

SEA TEL 4012 Vsat system as option

Horn: chromium-plated pneumatic horn with 3-tone automatic signal unit

Navtex System: paperless FURUNO NX-700-B Navtex

Telephone Units: 10 x Wi-Fi cordless, 15 x fixed VOIP telephones and 1 x door phone (part of BEST system)

EPIRB System: 1 x EPIRB SAILOR 406

Radar Reflectors: 2 x radar reflectors SAILOR

1 x AIS system, integrated with cartography

1 x SSAS SAILOR system, LRIT compliant

1 x BNWAS system with 4 stations (wheelhouse, Captain’s cabin, Crew mess and 1st officer’s cabin)

Engine Monitoring System: CAT integrated monitoring system, with a touch panel positioned in the wheelhouse

ENTERTAINMENT EQUIPMENT

1 x TV antenna system for terrestrial broadcasting reception

1 x radio antenna system for terrestrial broadcasting reception

“BEST” Integrated Entertainment System

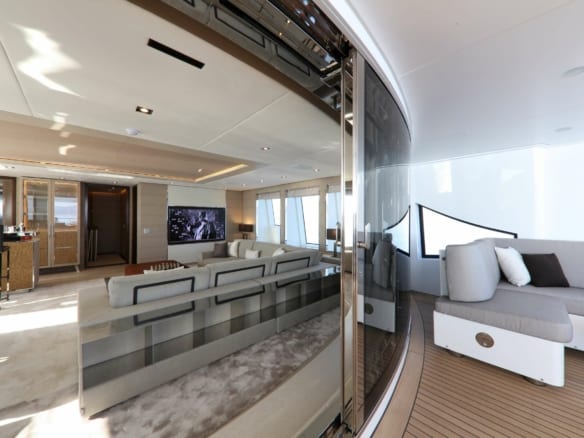

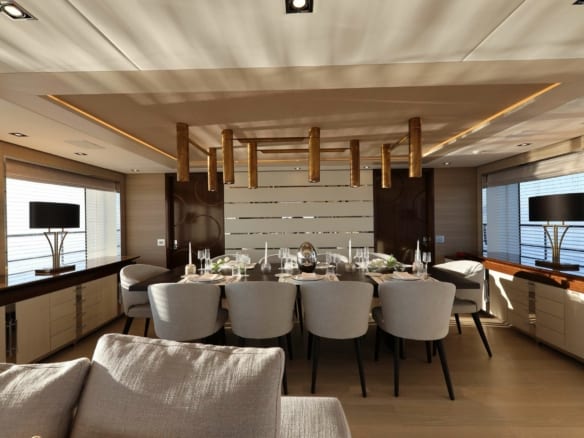

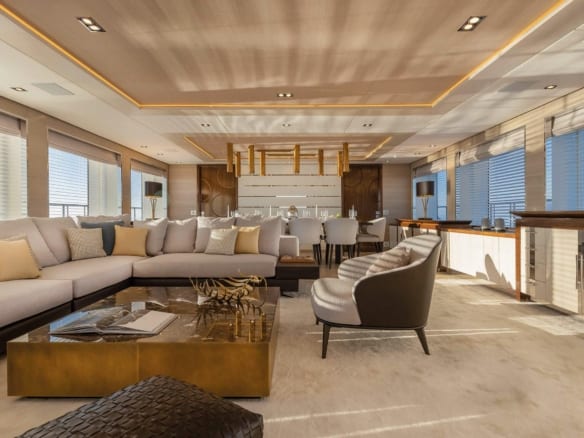

Main Saloon / Dining Area:

1 x TV 55” SAMSUNG LED 3D full HD 1080P
1 x “BEST” HD/3D A/V client
1 x SONY BD/DVD reader
1 x DENON AVR-X4100 A/V Receiver, Wi-Fi, AirPlay, 3 multiroom zones
1 x High quality B&W speaker 7.1 system with powered subwoofer
1 x iPad mini retina 16GB, for A/V and domotics control
External Main Deck Aft (slave of main saloon):

1 x Keyboard for volume control
3 pairs of APART 8” marine speakers
Owner’s Cabin:

1 x TV 55” SAMSUNG LED 3D full HD 1080P
1 x “BEST” HD/3D A/V client
1 x SONY BD/DVD reader
1 x DENON AVR-X4100 A/V Receiver, Wi-Fi, AirPlay, 3 multiroom zones
1 x High quality B&W speaker 5.1 system with powered subwoofer
1 x iPad mini retina 16GB, for A/V and domotics control
VIP/ Guests Cabins (x 4):

1 x TV 32” SAMSUNG LED full HD 1080P
1 x “BEST” HD/3D A/V client
1 x SONY BD/DVD reader
1 x DENON AVR-X3100 A/V Receiver, Wi-Fi, AirPlay, 2 multiroom zones
1 pair of B&W speakers
1 x iPad mini retina 16GB, for A/V and domotics control
Captain’s Cabin:

1 x TV 32” SAMSUNG LED full HD 1080P
1 x YAMAHA MCR-750 Micro Hi-Fi system – BD/DVD player –USB connection
1 pair of B&W speakers
Engineer’s Cabin:

1 x PIONEER DVH-340UB CD player with frontal USB connection
1 pair of APART 6” speakers
1st Mate Cabin:

1 x PIONEER DVH-340UB CD player with frontal USB connection
1 pair of APART 6” speakers
Crew Cabins (x4):

1 x PIONEER DVH-340UB CD player with frontal USB connection
1 pair of APART 6” speakers
Crew Mess:

1 x TV 32” SAMSUNG LED full HD 1080P
1 x YAMAHA MCR- 750 Micro Hi-Fi system – BD/DVD player –USB connection
1 pair of APART 6” speakers
Galley:

1 x PIONEER DVH-340UB CD player with frontal USB connection
1 pair of APART 6” speakers
Sky Lounge:

1 x TV 55” SAMSUNG LED 3D full HD 1080P
1 x “BEST” HD/3D A/V client
1 x SONY BD/DVD reader
1 x DENON AVR-X4100 A/V Receiver, Wi-Fi, AirPlay, 3 multiroom zones
1 x High quality B&W speaker 7.1 system with powered subwoofer
1 x iPad mini retina 16GB, for A/V and domotics control
Media Room:

1 x TV 55” SAMSUNG LED 3D full HD 1080P
1 x “BEST” HD/3D A/V client
1 x SONY BD/DVD reader
1 x DENON AVR-X3100 A/V Receiver, Wi-Fi, AirPlay, 2 multiroom zones
1 x High quality B&W speaker 5.1 system with powered subwoofer
1 x iPad mini retina 16GB, for A/V and domotics control
External Upper Deck Aft (slave of sky lounge):

1 x Keyboard for volume control
2 pairs of APART 8” marine speakers
External Upper Deck Forward (slave of sky lounge):

1 x Keyboard for volume control
1 pair of APART 8” marine speakers
Sun Deck:

1 x Marine CD/mp3 Player – Radio Tuner
Large Projector screen / Outdoors cinema mounted on posts
4 pairs of marine speakers

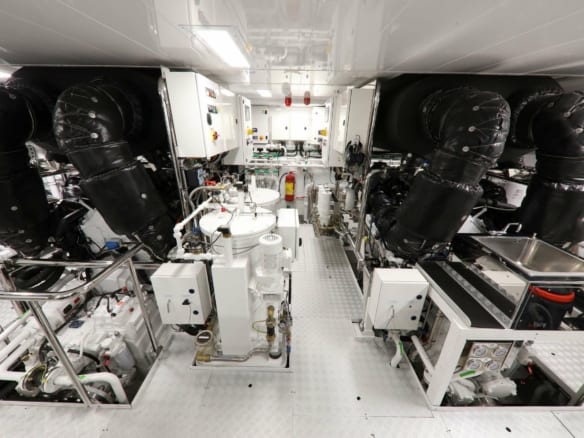

Engine Control Room:

1 x PIONEER DVH-340UB CD player with frontal USB connection
2 pairs of APART 6” speakers
Wheelhouse:

1 x PIONEER DVH-340UB CD player with frontal USB connection
1 pair of APART 6” speakers
Laundry:

1 x PIONEER DVH-340UB CD player with frontal USB connection
1 pair of APART 6” speakers

DOMESTIC APPLIANCES

Dumb waiter serving all decks

Crew Laundry:

2 x Washers ZANUSSI/MIELE
2 x Dryers ZANUSSI/MIELE
Crew Mess:

1 x Microwave ZANUSSI/MIELE
1 x Fridge AEG ELECTROLUX/MIELE
1 x Dishwasher ZANUSSI/MIELE
Lower Deck Guest Lobby:

1 x Mini Fridge VITRIFRIGO

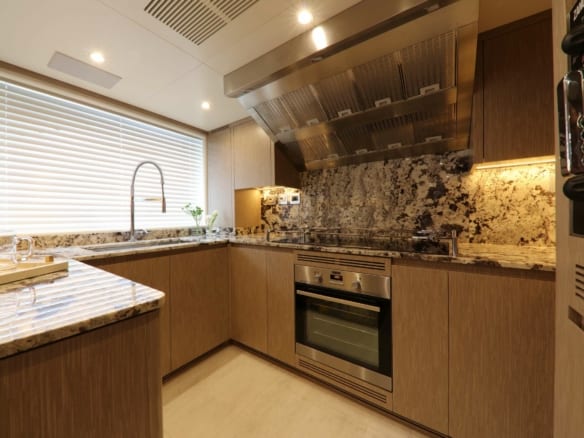

Galley:

1 x Convection Oven ZANUSSI/ELECTROLUX/MIELE
1 x Steam Oven ZANUSSI/ELECTROLUX/MIELE
2 x Fridge-Refrigerator ZANUSSI/ELECTROLUX/MIELE
3 x Burner electric ZANUSSI/ELECTROLUX/MIELE
1 x Fryer ZANUSSI ELECTROLUX/MIELE
1 x Hood ZANUSSI ELECTROLUX/METALTEK
1 x Dishwasher ZANUSSI/ELECTROLUX/MIELE
1 x Garbage macerator INSINKERATOR
1 x Ice Maker HOSHIZAKI
Main Deck Pantry:

1 x Glass Washer ZANUSSI ELECTROLUX/MIELE
1 x Microwave ZANUSSI/MIELE
2 x Wine Cellar EUROCAVE 70 bottles each
Owner’s Study:

1 x Mini Fridge VITRIFRIGO
Upper Deck Pantry:

1 x Glass Washer ZANUSSI/ELECTROLUX/MIELE
1 x Microwave ZANUSSI/MIELE
1 x Fridge AEG/ELECTROLUX/MIELE
Upper Saloon Bar:

1 x Ice Maker HOSHIZAKI
1 x Mini Fridge VITRIFRIGO
Sun Deck:

1 x Ice Maker HOSHIZAKI
1 x Mini Fridge VITRIFRIGO
1 x Barbecue ALPES Inox

DECK EQUIPMENT

Anchor Windlasses: 2 x 380V AC 3-phases vertical windlasses

Capstans: 2 x single speed electric capstans on the aft deck

Gangway: Stainless steel hydraulic telescopic retractable stern gangway

Manual Side Boarding Ladder: 1 x removable eight steps ladder 19” (480 mm) walkway for side access to the main deck through the bulwark doors, mounted on side bulwark gates

Swimming Ladder: 1 x hydraulic and recessed polished stainless-steel ladder on the swimming platform

Beach Club Shower: removable, in Inox, installed on the swim platform

Cranes for Tenders: Tender launch and recover overhead crane installed in the garage, hydraulically operated, with a lifting capacity of max 2500 kg

Hydraulically operated additional crane installed on the fore deck to launch and recover the rescue boat with a lifting capacity of 750 kg, with watertight protection for its electronic control box and power pack

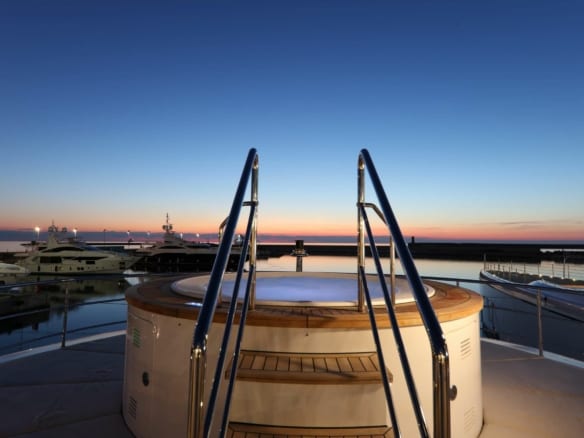

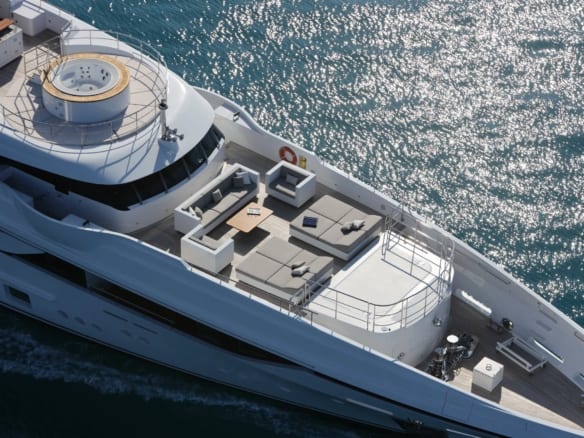

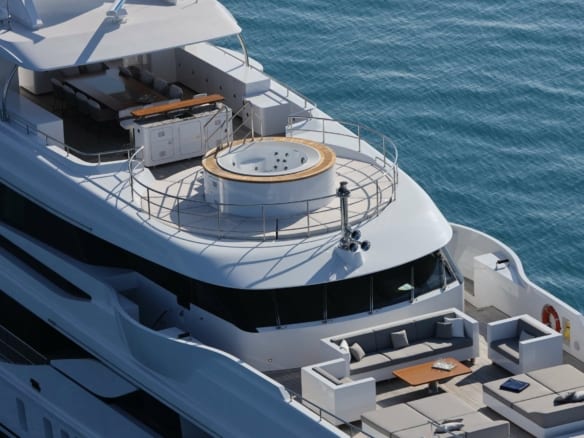

Pool: 1 x Jacuzzi whirlpool on bow deck, model ALIMIA Experience, with flood lights and overflow system. 12 kW heater with easy access to limit the cushions removal and underwater lights

Deck Washing Pump: Electric pump system connected to an expansion tank

Bridge Control Wings: Port & Starboard on upper deck

Main Mast: Aesthetic aluminium alloy main mast with platforms and other adequate supports for

navigation and communication antennas and satellite dishes, masthead wind unit, navigation lights, flags

Forward Mast: Aesthetic horseshoe aluminium alloy forward mast with navigation lights

TENDERS & WATER TOYS

Tender: 1 x NOMATECH 6.5m Tender, with VW 230 Hp inboard engine, max weight 2500 kg

Small tender of diesel engine type can be stowed in the ship’s bow, max dimensions 4.0 x 2.0 x 1.00, max weight 750 kg

Jet Skis: 2 x Jet-Skis can be stowed in the ship’s bow, max dimensions 3.0 x 1.05 x 1.00, max weight 400 kg (not supplied)

Rescue Boat: ZODIAC 3.5m MOB with YAMAHA 15 Hp Outboard stowed in the ship’s bow as per Flag Authority Requirements

Inspections
Prior appointment, please. 4-day notice greatly appreciated

Berth
Berth place management possible on French or Italian Riviera as well as Spain (Mainland and Balearic Islands), Greece and Turkey.
