Weekly or daily charter trips, bring your friend or family out to see the South of Spain and surrounding areas

ACCOMMODATIONS

Cabin Configuration: ( 3 Double, 2 Twin)

Aft Main Deck

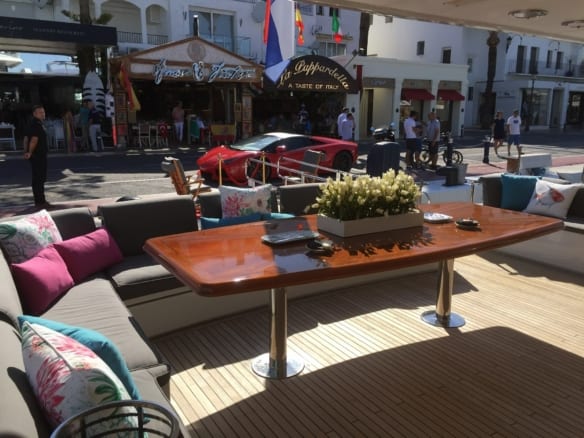

Aft deck dining and lounging area. Seating around the dining table will accommodate 10 persons.

Port and Starboard walkways forward lead to the main deck interior.

Main Salon

Service Bar with refrigerator and Granite Top for Aft Deck and Main Salon Service

Seating for two

Lounge area with Entertainment Center

56” Flat Screen TV by Samsung

DVD video and SKY TV programming

Stereo System by Samsung with B&K Components

Control System by Crestron

Electronically controlled Sun Shades and Curtains

Formal Dining Room

Large Round Cherry Wood Table with Designer Glass Center and Comfortable Seating for 10 Persons

Beautiful Cherry Wood Cabinetry for China and table ware

Commercial Galley

On Deck Day Head

On Deck Master Suite:

Full Service Office En Suite

King bed

Refrigerator/mini bar

Soft lighting

Silk (no sun) curtains electronically controlled

Two large closets

56” Flat Screen LED TV by Samsung

DVD video and SKY TV programming

Samsung stereo and B&K components

En Suite Bathroom

His and Hers separated by large ceramic shower

Bidet

Large Jacuzzi Bathtub

Silk and Designer Glass wall coverings

LOWER DECK

Two En Suite Twin Cabins:

Both with accommodations for two persons in each cabin

Large closet and ample drawer space

Both with 46” Flat Screen TVs’ by Samsung

DVD video and SKY TV programming

En Suite bathroom with Bath Tub

BOX 61, KYI-1102 Harbour Centre, George Town, Grand Cayman Contact: Olav Snijders, Mobile: +34 602 465 120

Two En Suite Double Cabins:

Both with Accommodations for two persons in each cabin

Large closet and ample drawer space

Refrigerator/mini bar

Both with 46” Flat Screen TVs’ by Samsung

DVD video and SKY TV programming

En Suite Bathroom with large Shower

UPPER DECK

Pilot House

Captains Cabin

Aft Salon

Full Service Bar

Complete with Ice Maker, Refrigerator and Sink

with Granite Top

Cherry Wood Cabinets

40” Flat Screen TV by Samsung

DVD Video and SKY TV programming

Stereo System by Samsung

B&K Components

Karaoke Player

C-Shaped Sofa for additional seating

Large Windows for Viewing

Electronically Controlled Curtains

Hardwood floors

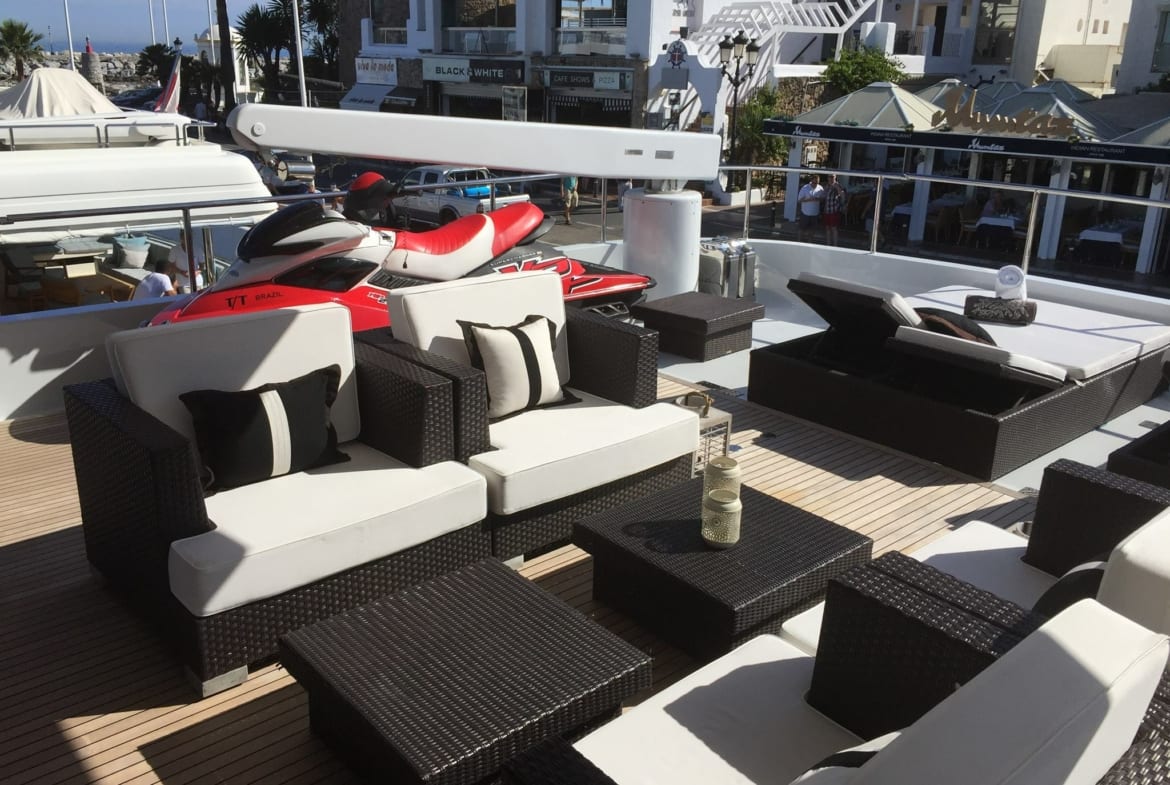

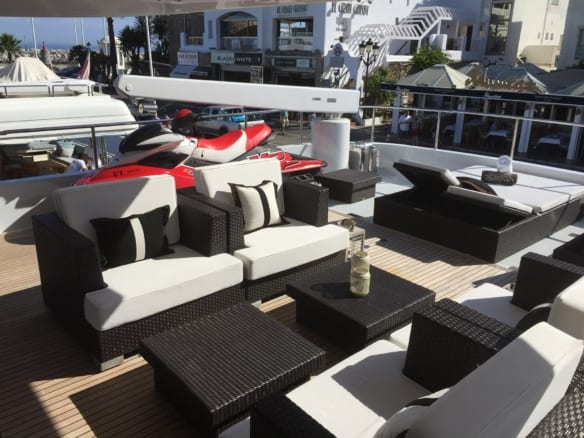

Boat Deck Exterior

The Starboard side stairway up from the Main Deck leads to the Boat Deck. 4 large comfortable lounge chairs.

The Boat Deck is also a storage deck for the yachts tenders and toys.

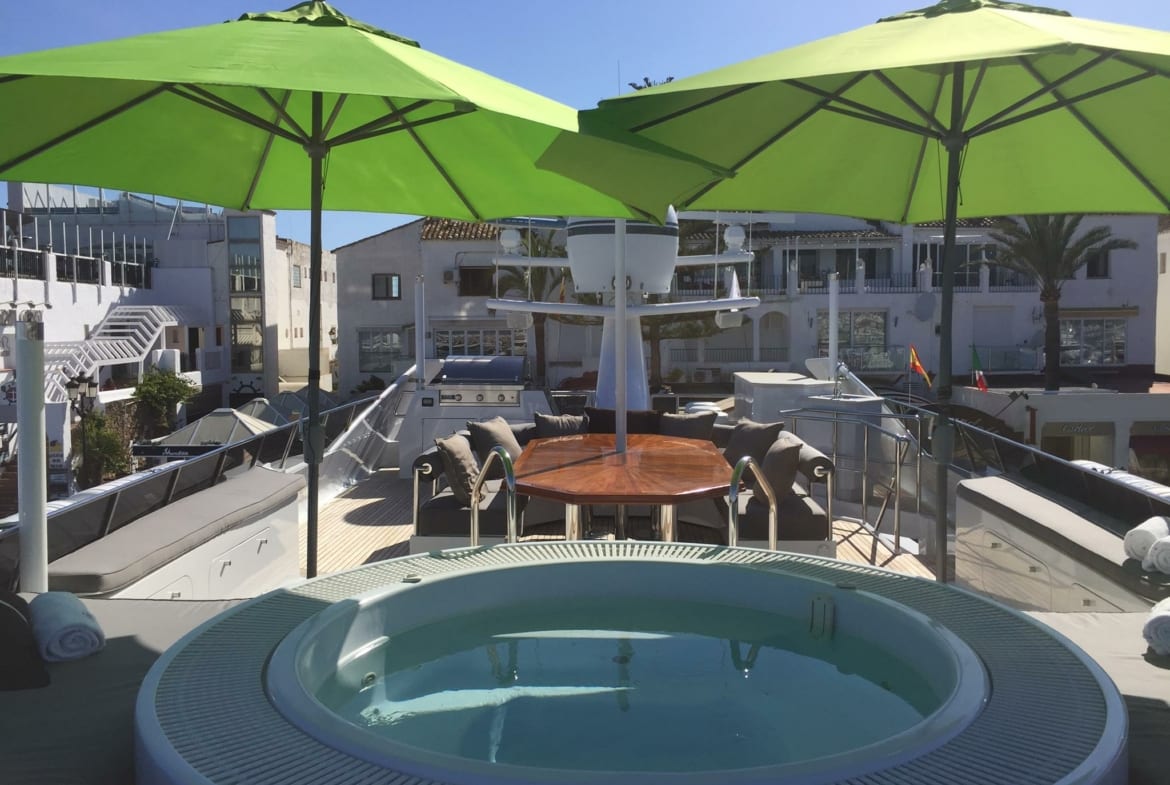

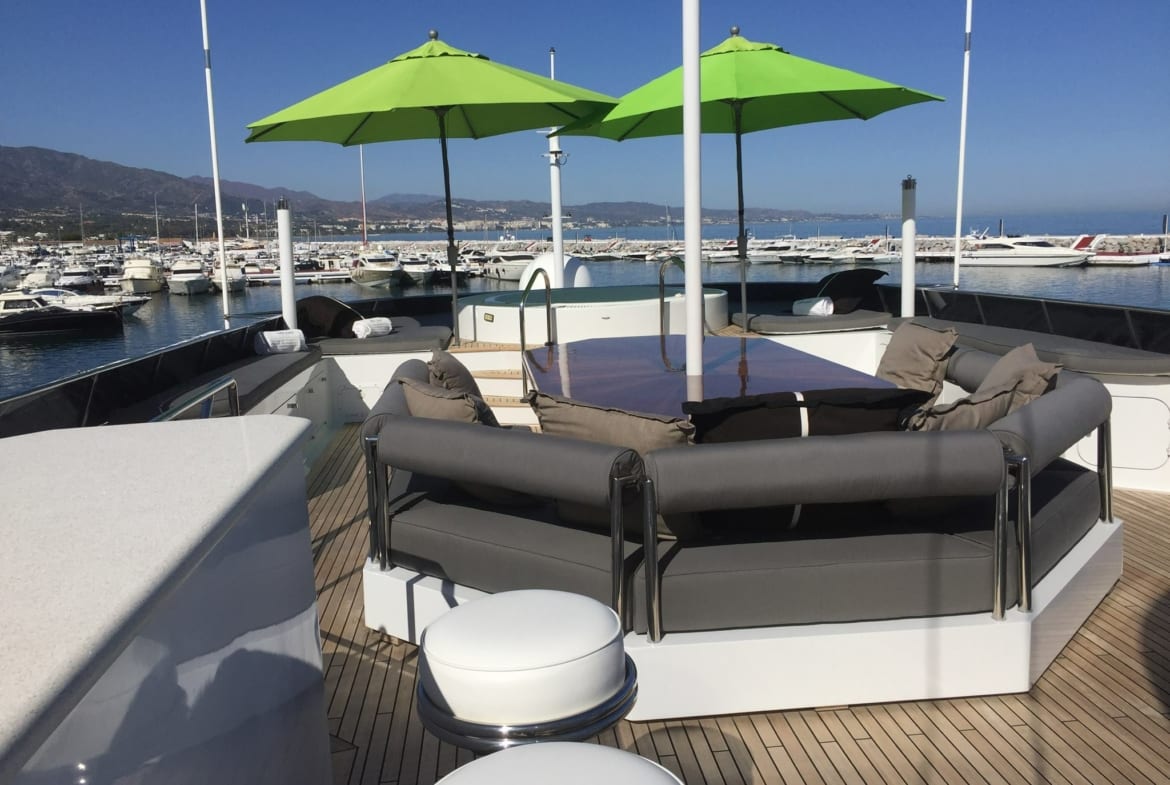

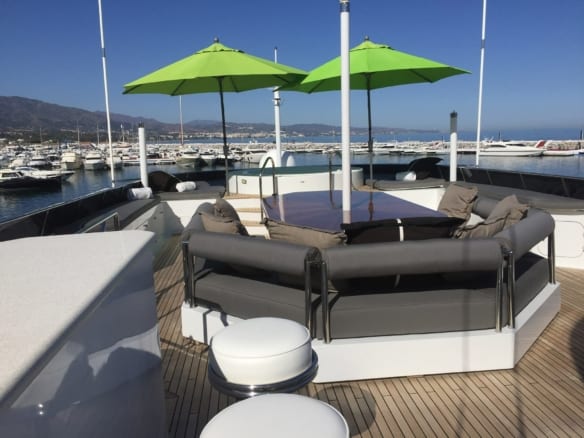

SUNDECK

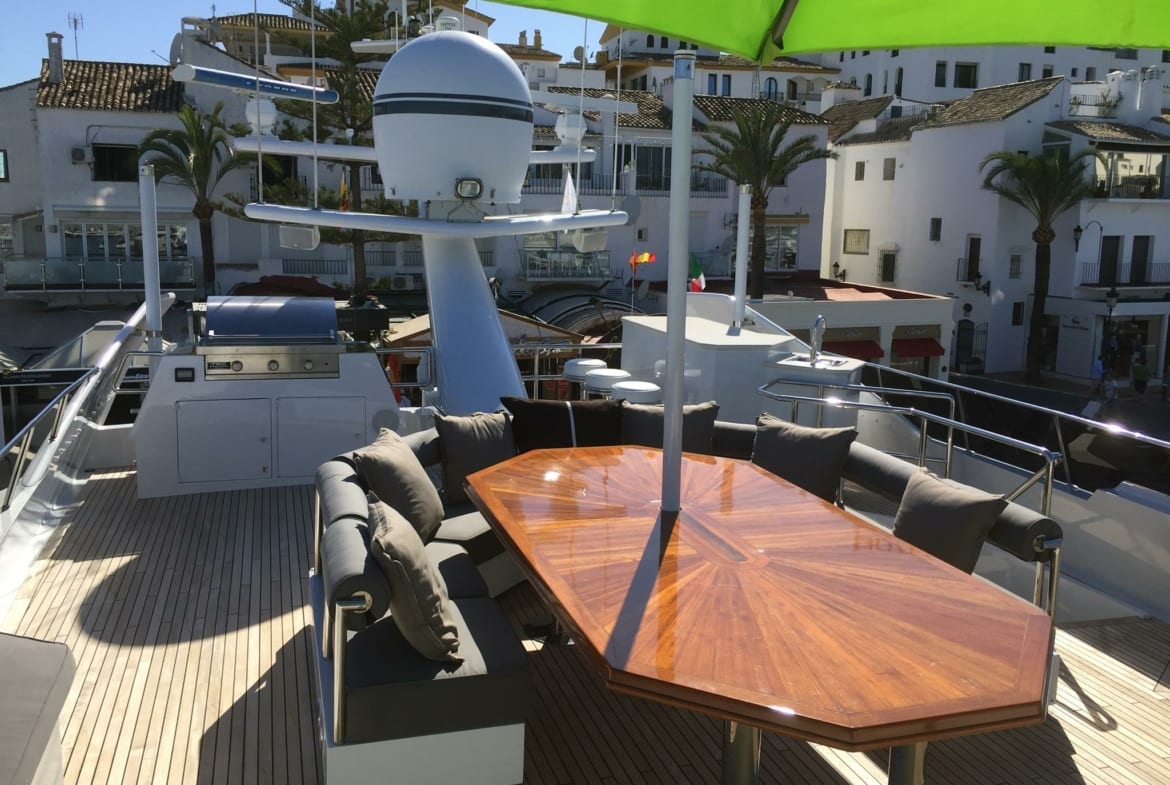

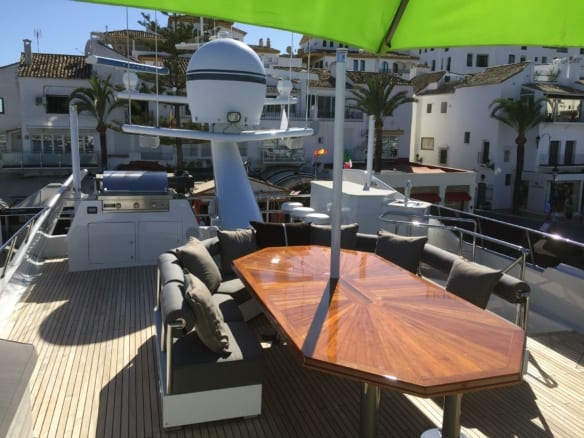

20 square meters of lounge area provide for sunning and dining. The dining table will seat 12 persons comfortably

and the Full Service Bar seats 3. Large Stainless Steel BBQ.

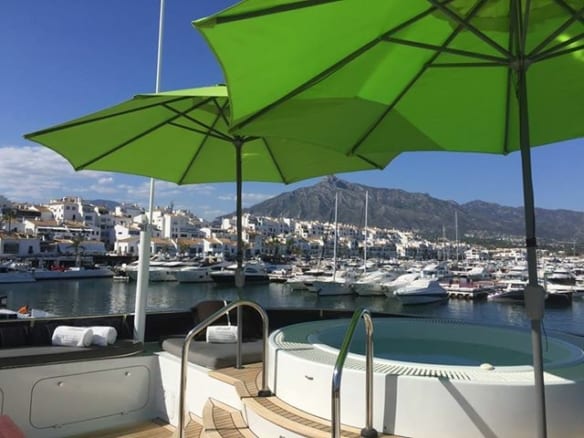

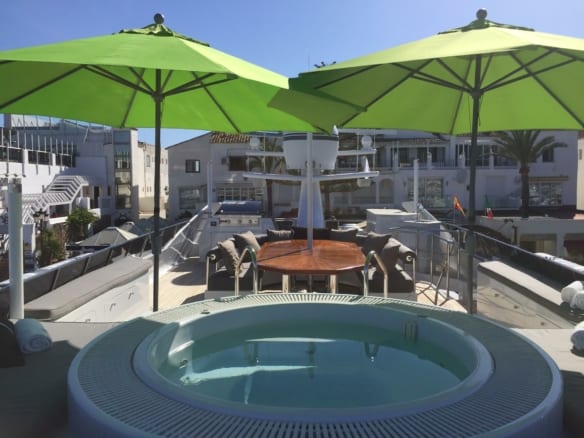

6 person Jacuzzi with soft padding and overstuffed pillows.

Six speakers for surround sound.

MECHANICAL

Generators-2x Northern Lights M-6414-T/HE/80L (80KW @ 1800 RPM),

SB: 19614 hrs. Engine & Generator overhauled in April/ May 2014 @ Northern Lights, Lemmer, the Netherlands.

PS: 8011 hrs. Engine overhauled in June 2013 @ Avantgard shipyard, Pula, Croatia.

Propulsion-Twin screw

Engine hours:

SB: 9270 hrs, PS: 9242 hrs. W6 performed @ MTU Dordrecht, the Netherlands in April/ May 2014.

Bow thruster: Holland Roerpropellor bowthruster. PD 52-600 ALU. Excited by means of Hydraudyne Hydraulic PTO.

Overhauled June 2015

Water maker: 1 x HEM 20 series. 1x HEM 30 series. Overhauled June 2015

Stabilizers: Naiad, system overhauled in 2014 by Frank Mulder Yachting projects. Including new & larger fins,

BOX 61, KYI-1102 Harbour Centre, George Town, Grand Cayman Contact: Olav Snijders, Mobile: +34 602 465 120

cooling water system, & renewal of the control system by Naiad Datum Adaptive Three-term Control System.

Fuel separator: Westfalia OTB 2-00-066.

Air-conditioning: Dometic Marine Air MCGV360(008)SRC 360000 BTU. New installed in May 2014 by Frank Mulder

Waste water treatment: Hamann

Oily water separator: DVZ 500 PC/VC. Installed in June 2013 @ Avantgard shipyard, Pula, Croatia.

Toilet system: 14 Evac type toilets. Vacuum system by EVAC. Overhauled/ renewed in 2014 by Frank Mulder

Boilers: 1 x NIBE ES23-210 6KW 1 x NIBE ES24-210 6KW, newly installed in 2011 @ Genoa, Italy.

Steering: Sperry Marine 190156-0201. Original order no: BN 8340.

Propellers: 2x Schaffran. 4 blade propeller. Outboard turning, (Nibral) 1250 x 1280 (Dia x Pitch).

Gearbox: 2x ZF BW 465. Reduction: 3.037:1. Both overhauled @ ADS van Stigt, Gorinchem, the Netherlands in

May 2014.

SAFETY & FIRE PROTECTION

EPIRB: Yes

Life rafts: 4x

Life jackets: Yes

Fire–fighting equipment:Yes

Ship alarms: Servowatch

Bilge & fire pumps: 1x Sterling AKHK 4101 AN139.22.0 Fifi/ bilge. 1x bilge handpump. 1x PTO Fifi/bilge on MTU.

Searchlight: 2x ACR Electronics RCL600

Security cameras: 4x

COMMUNICATION & NAVIGATION

Magnetic compass: CPlath 2795

Gyro compass: CPlath Navigat XII/Mod 10.

Log: B&G HS2000

Depth sounder: Furuno FCV-585

Autopilot: CPlath Navipilot V

Radar: 2x Furuno 1411/1510 (1x Color 1x Monochrome).

Electronic chart system: Raymarine Hybrid touch. New installed in 2012 @ Avantgard shipyard, Pula, Croatia.

GPS: 2x Northstar 952X

Instrumentation system

(wind speed & direction): B&G HS2000

Inmarsat C: Trimble Galaxy TNL 7001.

Navtex: Furuno NX-500

MF/HF DSC Terminal: Furuno DSC-6/6A

SSB radio: Furuno FS2500

VHF: 1x Simrad RS87, 1x Furuno, 1x Furuno FM-2510

Mini M: Skipper 150

Telephone exchange: TBC

VHF hand held radio: 4x Icom.

ELECTRICAL

Voltage: 208/120 V

Frequency: 60 Hz

Shore power converter: Atlas SPCL75KX6X3-XL-AS-GT-SB-SU Output 60 KW.

Batteries: 4x 12V-165AH AGM gel type start batteries for starting SB & PS genset. Installed 2012.

8x 12V-220AH AGM gel type start batteries for starting SB & PS MTU. Installed 2012.

4x 12V-225AH Lead Acid type service batteries. Installed 2014.

BOX 61, KYI-1102 Harbour Centre, George Town, Grand Cayman Contact: Olav Snijders, Mobile: +34 602 465 120

DECK EQUIPMENT

Anchors & chain: 2x Anchor with 6 shackles of chain.

Cranes: SB, 1x Cramm 1100 kg SWL. PS, 1x Nautical structures EZ2500

Windlass: Anchor winch; 2x Steen Work. Type: 23.48.

Passarelle: Cramm. Overhauled @ Cramm the Netherlands in May 2014.

Bathing ladder: Yes, Stainless steel.

Bimini top: Yes

Stern capstans: 2x Steen Work. Type: 59.44

GALLEY

Refrigerator: 2x SubZero 601R

Freezer: 1x SubZero 501F (a large additional Chest Freezer in Lazarette)

Oven: 2x

Stove: 1x Miele ceramic

Microwave: 1x

Icemaker: 3x Hoshizaki.

Dishwasher: 1x Miele Optima Series.

Washing machine: 1x Miele Professional WS5425 1x Miele touchtronic W3033

Dryer: 1x Miele Professional T5206. 1x Miele Professional PT7136 plus.

AUDIO & VISUAL EQIUPMENT

Samsung LCD TV’s and DVD throughout guest accommodation.

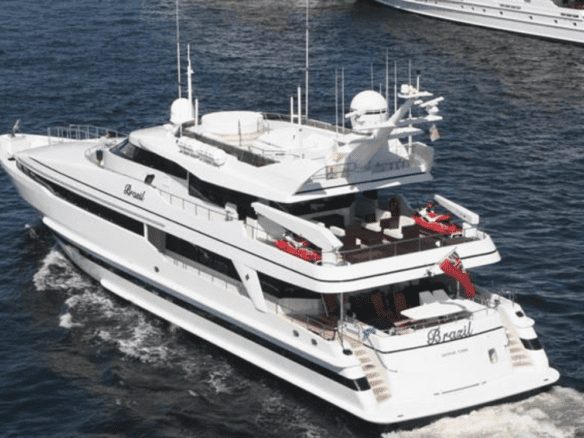

Sale & Charter: EUR 7.200.000 VAT paid // EUR 110.000 weekly high

Length:39.9m / 131’0

Beam:8.48m / 27’10

Draft:2.20m / 7’3

Shipyard:Heesen Yachts – Netherlands

Designer:Gerhard Gilgenast

Year built:1993

Last refit:2008/09, 2013/14, 2015/16

Guest cabins:5

Crew:8

Cruising speed:14.5 knots

Max speed:19 knots
Flag: Croatia [HR]
AIS Type: Pleasure Craft
Gross Tonnage: 361

Length Overall x Breadth Extreme: 40.15m × 9.1m
Year Built: 1993

Name: BRAZIL
Year: 1993
Exterior:
Interior
Country:
Top speed:
Cruise speed:
Listing ID: 5725
