BUILT/REFIT: 2010
BUILDER: BILGIN YACHT
DESIGNER: Exterior: Bilgin Yachts
LOA: 33,40 m (109,58 ft)
BEAM: 6,77 m (22,21 ft)
DRAFT: 3,20 m (10,50 ft)
GROSS: 163 tons
CLASSIFICATION: RINA / commercial
SPEED, RANGE AND CONSUMPTION
CRUISE SPEED: 15 Knots (1800 rpm)
MAXIMUM SPEED: 19 Knots (2200 rpm)
ECONOMICAL SPEED: 12 Knots (1500 rpm)
CONSUMPTION: 300 l/h @ 15 knots
CONSTRUCTION
HULL: Wood
CAPACITIES
FUEL CAPACITY: 13000l
WATER CAPACITY: 12000l
WATER MAKER: 2 Idromar water maker (400 l/h)
MACHINERY

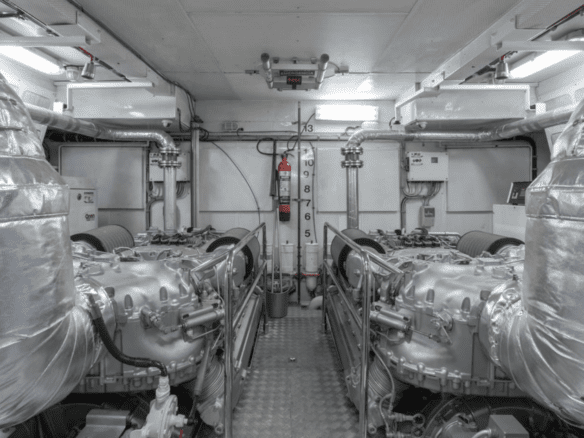

ENGINES: 2 MTU 1850 Hp
ENGINES MODEL: MTU 12V 2000 M93 1850 Hp
GENERATORS: 2 x ONAN e-QD 50kW
ELECTRICITY: 380v-3 phase-50Hz
BATTERIES: 12 service batteries with 2 Mastervolt battery chargers
100l/h @ 12 knots
1410 hrs (03/15) hours PORT
1399 hrs(03/15) hours STAREBOARD
2799 hrs(03/15) hours PORT
3323 hrs(03/15) hours STAREBOARD
24/100-3 4 generators start batteries with 1 dolphin
battery charger 4 engine start batteries with 1 dolphin
battery charger
SHORE POWER: Gunduz Tafor 45kwA
AIR CONDITIONING: Marincold with 3 compressors
STABILIZERS: 2 Track stabilizers “0” speed
GUEST ACCOMMODATION
GUESTS CRUISING: 8
GUESTS SLEEPING: 8
SINGLE CABINS: 2
MADNESS
DOUBLE CABINS: 3
DESCRIPTION:

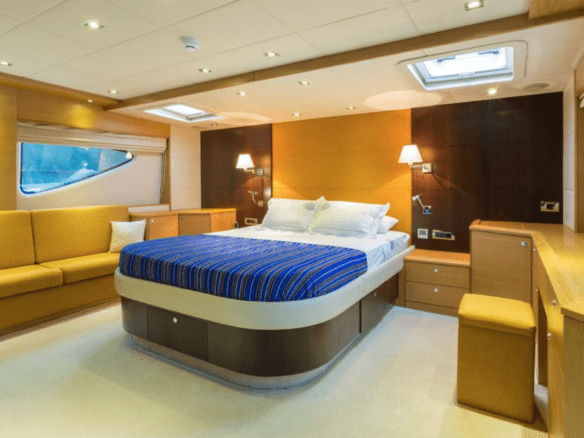

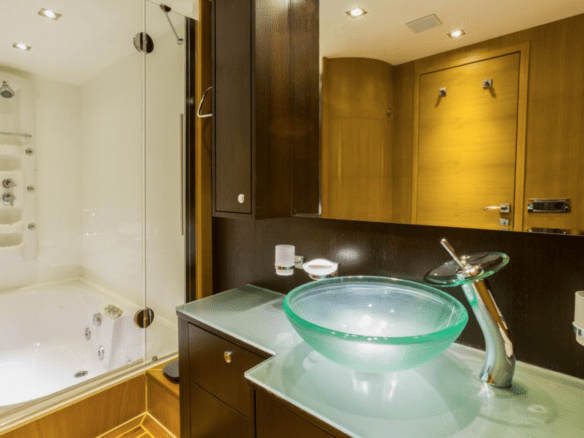

1 Owner’s cabin king size double on main deck with ensuite bathroom (shower and
hydromassage)

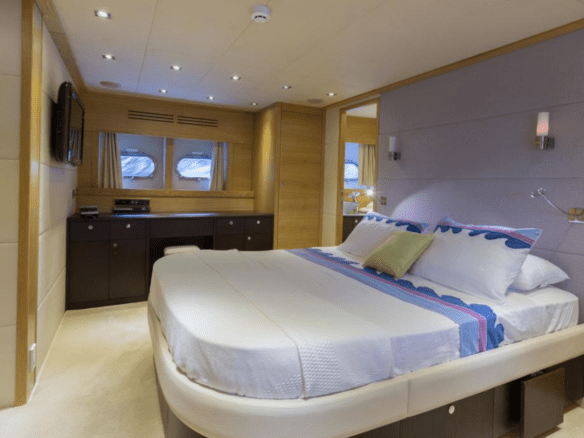

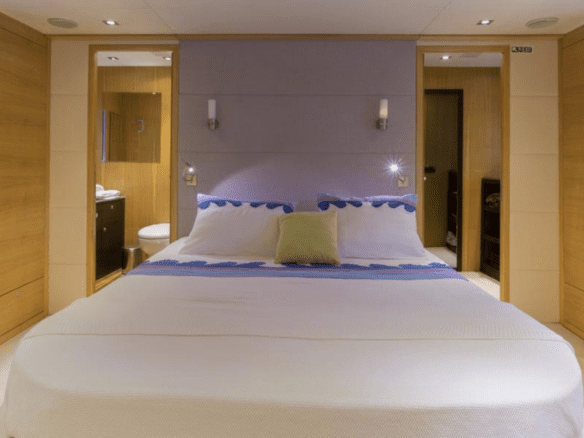

2 Lower Deck Guest cabins with king size doubles and ensuite bathroom (1 with shower and
hyrdomassage and 1 with shower and Jacuzzi)

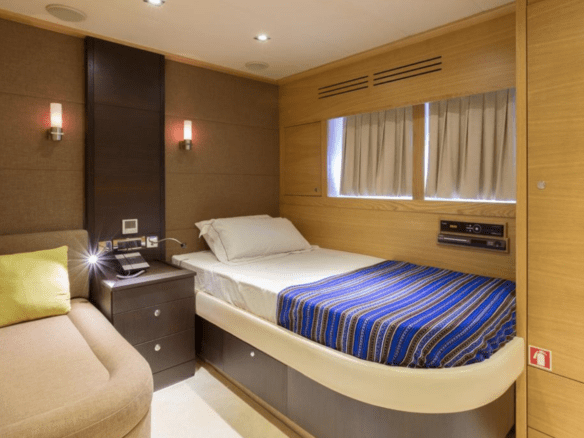

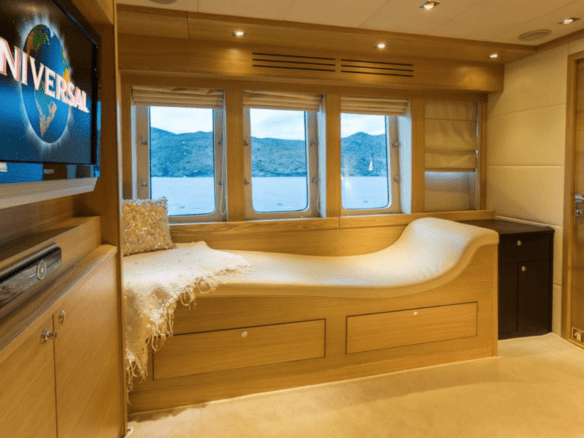

2 Single Guest Cabins on lower deck with ensuite bathroom mutually
1 Single crew cabin with ensuite bathroom
CREW ACCOMMODATION
CREW: 5
CREW CABINS: 3
EQUIPMENT
DECK DESCRIPTION:
• Bilgin hydraulic passerelle 4.5m
• Sanguinetti lift platform 800kg

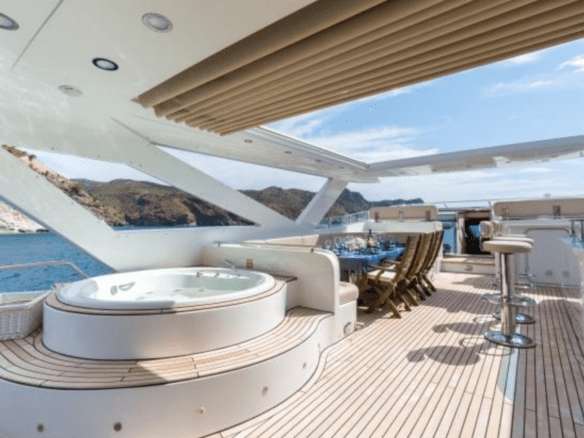

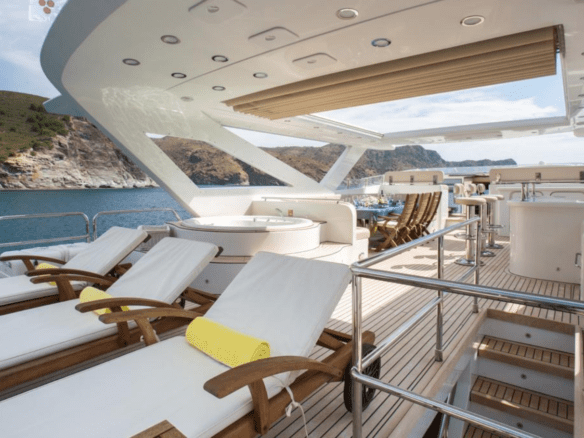

• Jacuzzi on sun deck
• Electric top on sun deck
• central vaccum
COMMUNICATION:
• 3 x Thrane & Thrane sailor VHF SP 3520
• 2 x VHF Raymarine Ray 218e
• 1 x Tracphone sat telephone FB 500
• Siemen Gigaset telephone in every cabin

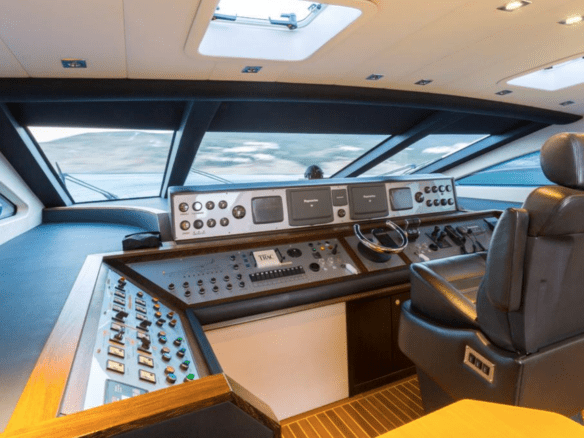

NAVIGATION:
• 1 GPS Raymarine E120 (bridge and fly bridge repeater)
• 1 Raymarine Radar E120 (bridge and fly bridge repeater)
• 1 Raymarine Sonda E120 (bridge and fly bridge repeater)
• 1 Raymarine autopilot Smart Pilot (bridge and fly bridge repeater)
• 2 Plastimo offshore 135 magnetic compass (bridge and fly bridge)
• 1 Epirb Mc Murdo E5
• US speed stabilizer system (Track System)
AUDIO VISUAL:
• Philips flat screen TV 27” in every doubles guest cabins
• Philips screen TV 20” in singles guest cabins
• Philips TV 20” in every crew cabins
• Philips flat screen TV 32” in the saloon
• Digital Satellite received Next Star and DVD in every cabins
MADNESS
• Canal Plus Satellite in the saloon
• Yamaha natural sound AV receiver RX-V453
GALLEY AND LAUNDRY:
• 2 x Liebherr frigos comfort fridge-freezer
• 1 x Bosch microwave
• 1 x Bosch dishwasher
• 3 x Kled small fridges
• 2 x U-line ice-makers (kitchen and fly-bridge)
• 2 x Nespresso coffee machine
• Bosch ceramic hobs
• 1 x Bosch drymachine
• 1 x Indesit washing machine
• 1 x Rommer freezer
TENDERS AND WATERSPORTS:
• Williams 385 with 85HP
SAFETY AND SECURITY:
• 5 fixed cameras, 2 in the engine room, 1 in port side, 1 in starboard side and 1 in the stern.
• 2 Arimar 10 man life craft
• 16 life jackets (150 newtons)
• 7 life jackets ( 100 newtons)
• 4 lifeguard costume
• 1 Diesel Fire Motor Pump VILPIN L-2RD-50
• Smoke detectors alarm in the engine room and in each bedroom
• Opening/closing wifi detectors for each windows below the main deck
Name: Madness
Year: 2010
Exterior:
Interior
Country:
Top speed:
Cruise speed:
Listing ID: 3824
